热销的硬软胶囊及药片的检测机

  • 热销的硬软胶囊及药片的检测机
  • 热销的硬软胶囊及药片的检测机
型号︰YJX-220B
品牌︰-
原产地︰中国
单价︰-
最少订量︰1 件
分享到:

 共有 8 相关信息
上一个34567下一个

产品描述

1




Wholesale Simply Installed Pharmaceutical Equipment Inspection Machine

 —Summarize

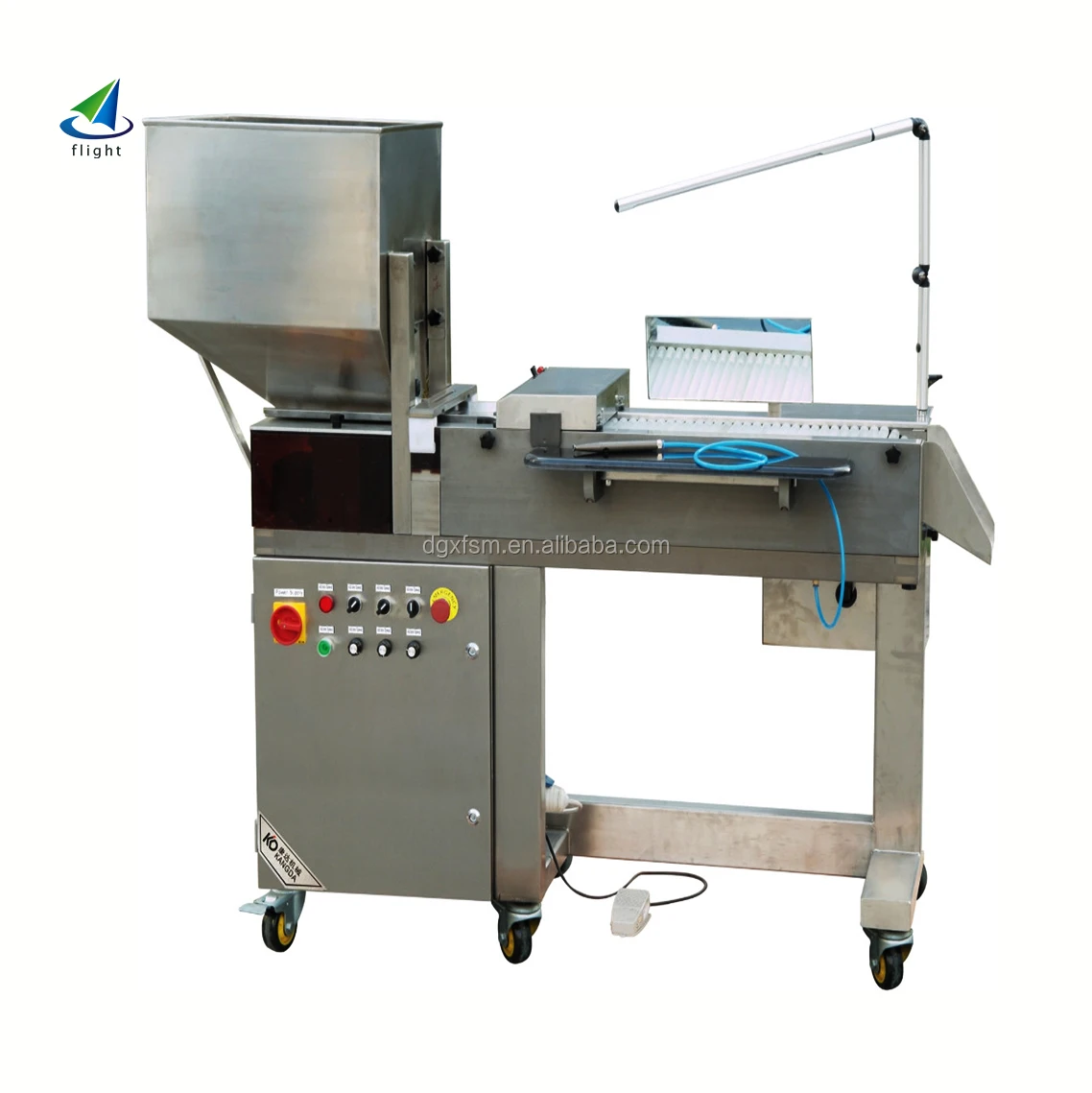

YJX-220B model drug inspecting machine is a new product researched by our company on the basis of integration of domestic and foreign advanced technologies in order to meet the needs of pharmaceutical sector. It can test outlook quality for hard capsules, soft capsules and tablets.

Work principle:

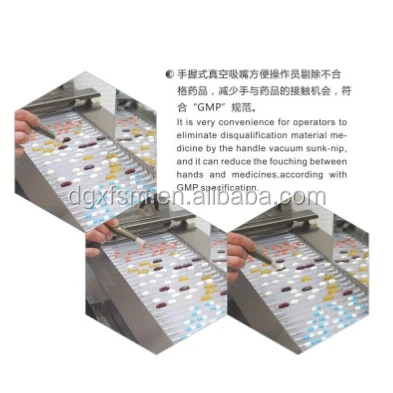

The products enter into the vibrating deeper through the bunker, and then enter into the rotating roller in single. On the feeding tray is a screen mesh that can get rid of the pellets and chips in the product. Under the feeding tray is a power collecting box that can recycle the small chips. The medicines equally drop on the rotating roller from feeding tray, and then they will continuously overturn in front of the operator. And thus the operator can easily select the unqualified product out from them. The foot switch can stop the delivery belt at any time. The medicine still keep overturning while the delivery belt is stopped, which won't affect the testing process. There is an adjustable mirror that can help the operator select the unqualified product at the other end. As the vacuum system is applied, it needs not to connect a vacuum pump outside. There is no blind angle and fade zone in its design. As a result, it can assure the products can be tested in all directions.
The rotating speed for roller can be adjusted alone. It won't be affected by the testing speed. It is a good equipment.



—Technical parameters

Power supply

AC, 220V/50HZ 1 phase,  110V/60HZ 1 phase or customization

Power

 0.6 KW

Compressed air

 6 bar

Overall size

 1400×650×1250 mm

 Net weight

 125 kg



Hot sale

                             ——Hot Sale Products——

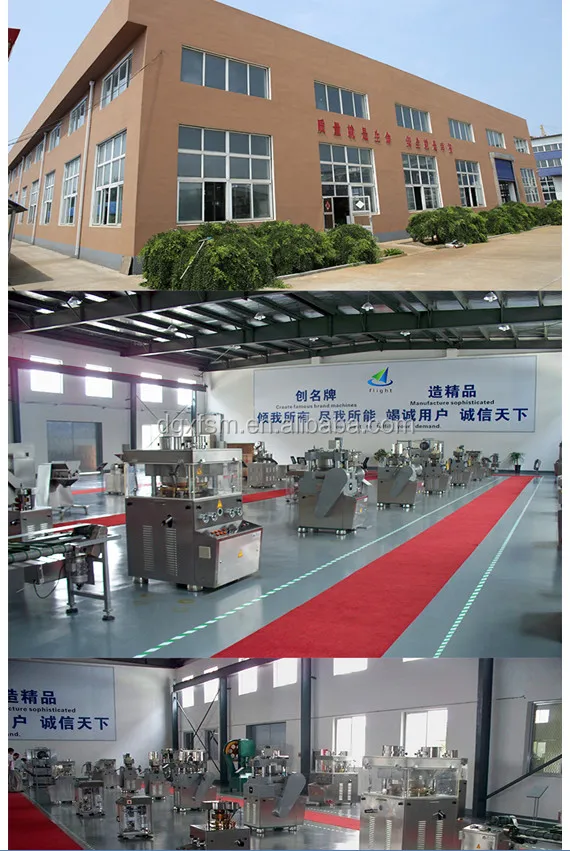

——Our Company

2018-07-17_171953



Certificate


——Our Customer——







  ——Packing & Shipping——


Delivery time

Within 30 days after receiving the payment.

Payment methods

T/T or Western Union payment, and full payment before shipping

Guarantee

One year quality guarantees and free with spare parts for one year.

After sales service

The English user manual Circuit diagram
