全自动液体微丸硬胶囊填充机

  • 全自动液体微丸硬胶囊填充机
  • 全自动液体微丸硬胶囊填充机
  • 全自动液体微丸硬胶囊填充机
  • 全自动液体微丸硬胶囊填充机
  • 全自动液体微丸硬胶囊填充机
  • 全自动液体微丸硬胶囊填充机
型号︰NJP-260C
品牌︰-
原产地︰中国
单价︰-
最少订量︰1 件
分享到:

 共有 7 相关信息
上一个12345下一个

产品描述







———Descriptions———

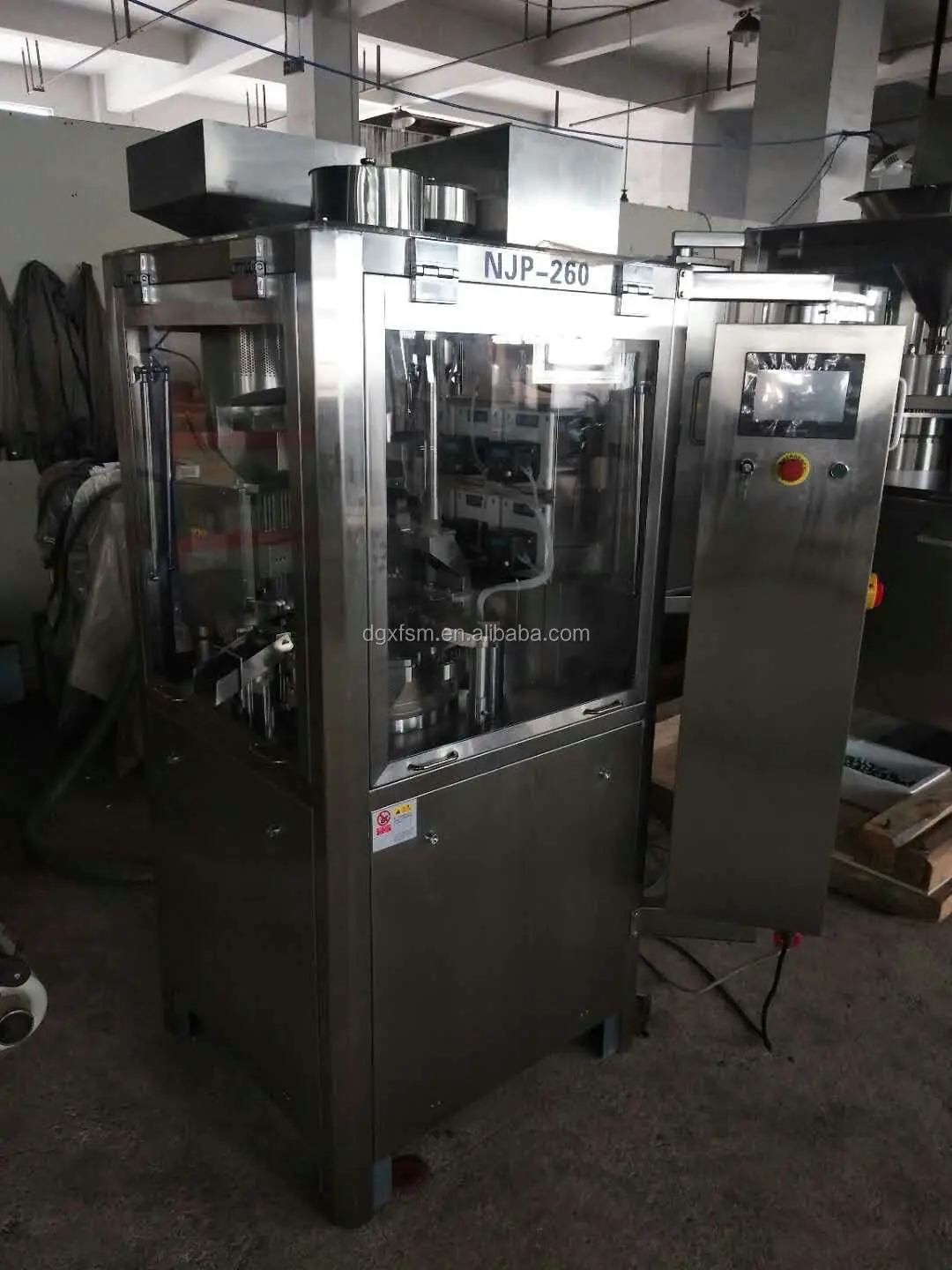

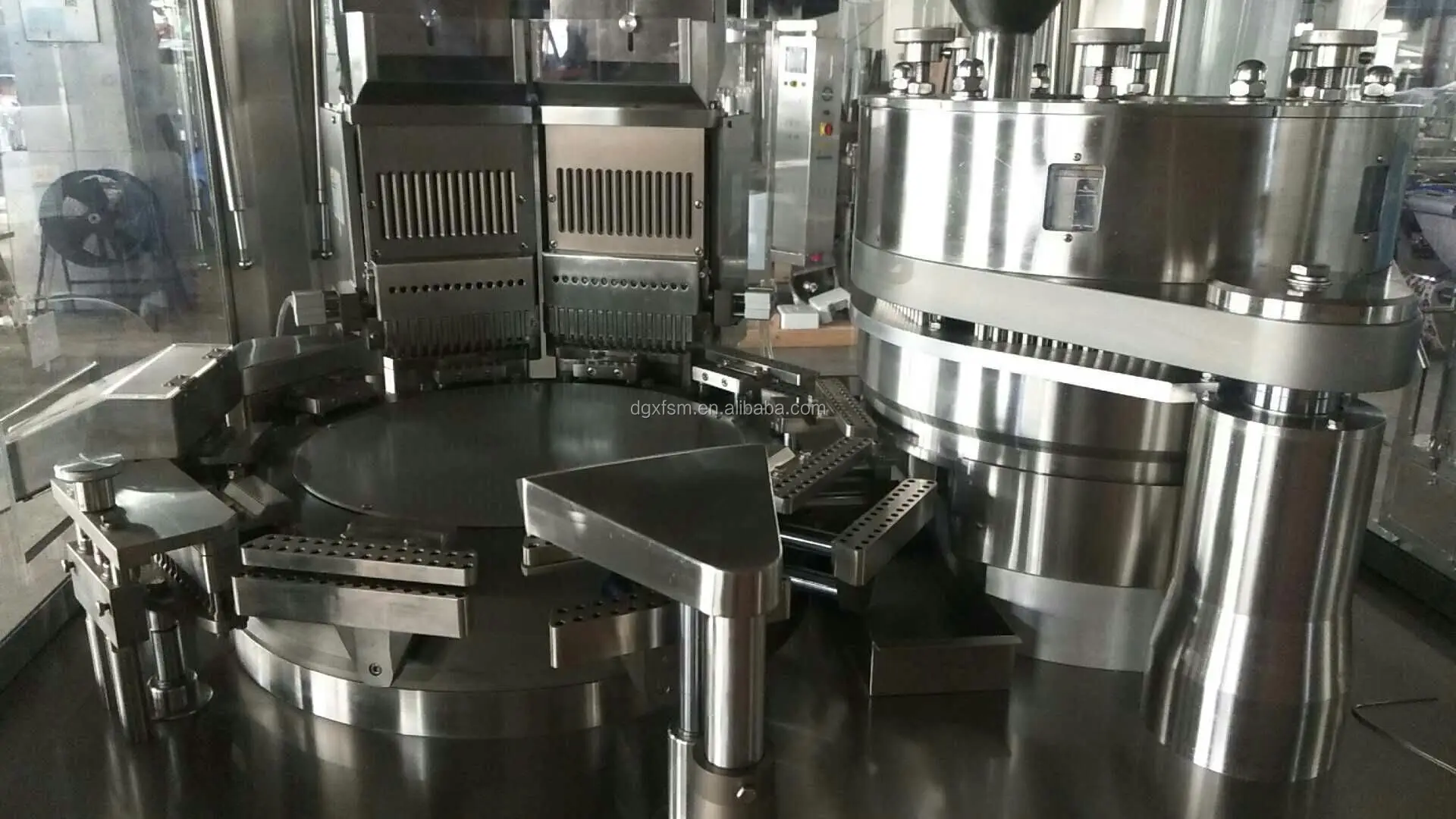

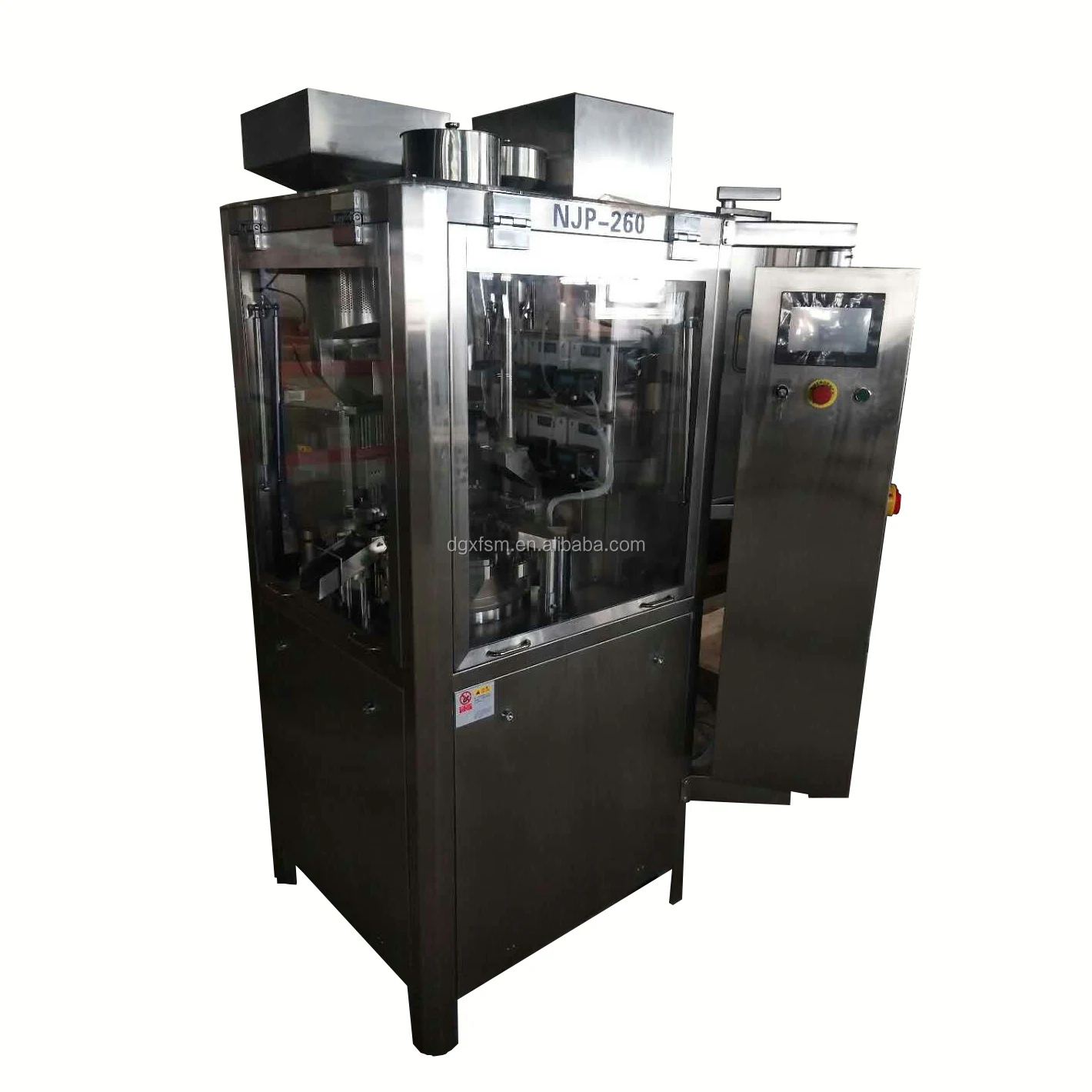

This machine is an intermittent motion and hole plate type filling fully automatic capsule filling

equipment.

This machine adopts optimization design combined the characteristics of Chinese medicine and

The requirement of GMP, It has the characteristics of compact mechanism, small volume, low

noise, precision filling dosage, multifunction, running stably etc.

This machine can finish the following motion at the same time: capsule feeding, capsule

separating, powder filling, capsule rejecting, capsule locking, finished capsule discharge and module cleaning etc.

This machine is the most ideal hard capsule filling equipment for pharmaceutical and health food

Industries.






 ———Technical Parameters———



Model

NJP-260C

Maximum capacity

18000 capsules/hour

Capsule accuracy

≥ 99.5 %

Filling precision

Liquid 300 mg ≤ 3%

Applied capsule size

00# - 5# and safety capsule A-E

Filling type

Liquid or liquid and pellet

Power

5.75  KW

Power supply

380/50HZ 3 phase or customization

Vacuum

30 M3/H-0.02-0.05MPa

Dust absorption

1000 M3/H2X105PA

Noise

< 75 dB

Water required

Water –type vacuum with recycle tank or other water supply

Vacuum degree

-          0.02  -  -  0.06 MPa

Water

250 L/h

Water inner diameter

20 mm

Water drain diameter

27 mm

Temperature

18 – 24 ℃

Height of factory

Manual feeder ≥ 2.6 m, vacuum feeder ≥ 2.8 m

Humidity

40 – 55 %

Displacement

300 m3/h

Net weight

900 kg

Overall size

1020×860×1970 mm

finished product



                                 ——Features——

All parts contact with the medicine powder and capsule are made of high quality stainless steel.

The main parts adopt international advanced products such as LKO bearings, OMRON and ATMEL electric components etc.

The dosage can be adjusted easily and reliably.

Easy to replacing the moulds.

5.  Adopts cambered surface can dividing structure, compact structure, low noise, circulates steady, maintenance convenience.



——Our Company

2018-07-17_171953

 Flight Pharmaceutical Machinery CO., Ltd is the professional manufacturer and export of

various pharmaceutical machineries in China. Our company has profuse designs with series

quality grade, and expressly, our price is very competitive, because we are manufactory.

  Our factory developed about forty types of machines in over ten varieties. By ISO9001:2000

quality system attestation, accord with GMP attestation request. All tasks from casting to

metal machining, and general assembly are accomplished ourselves.

  We produce and export various pharmaceutical machineries, relevant medicament detecting

instruments and packing machinery, such as Rotary tablet press, Single punch tablet

press, Pulverizer, Mixer,Coating machine, Granulator, Labeling machine, Liquid filling

machine, Capsule filing machine, Blister packing machine, and so on.

  We have professional export office, with an experienced and professional team, they will

service in whole business. By excellent quality, reasonable price and perfect after-service,our

products have been sold in many countries and regions all over the world, Such as United

States, Canada, Australia, United Kingdom, Bulgaria, Russia, Indonesia, Pakistan, Thailand

and Vietnam etc, these products are very popular with the customers there.



 Try to do everything, let customer satisfaction, this is our company’s service tenet.

                <<Welcome new and old customers come to discuss business>>

Certificate


Buying Guides

——Our Customer——





Packing & Shipping

  ——Packing & Shipping——


Delivery time

Within 30 days after receiving the payment.

Payment methods

T/T or Western Union payment, and full payment before shipping

Guarantee

One year quality guarantees and free with spare parts for one year.

After sales service

The English user manual Circuit diagram

价格条款︰FOB Shanghai
付款方式︰TT
包装︰胶合板木箱
交货期︰15个工作日
质量/安全认证︰ISO CE
