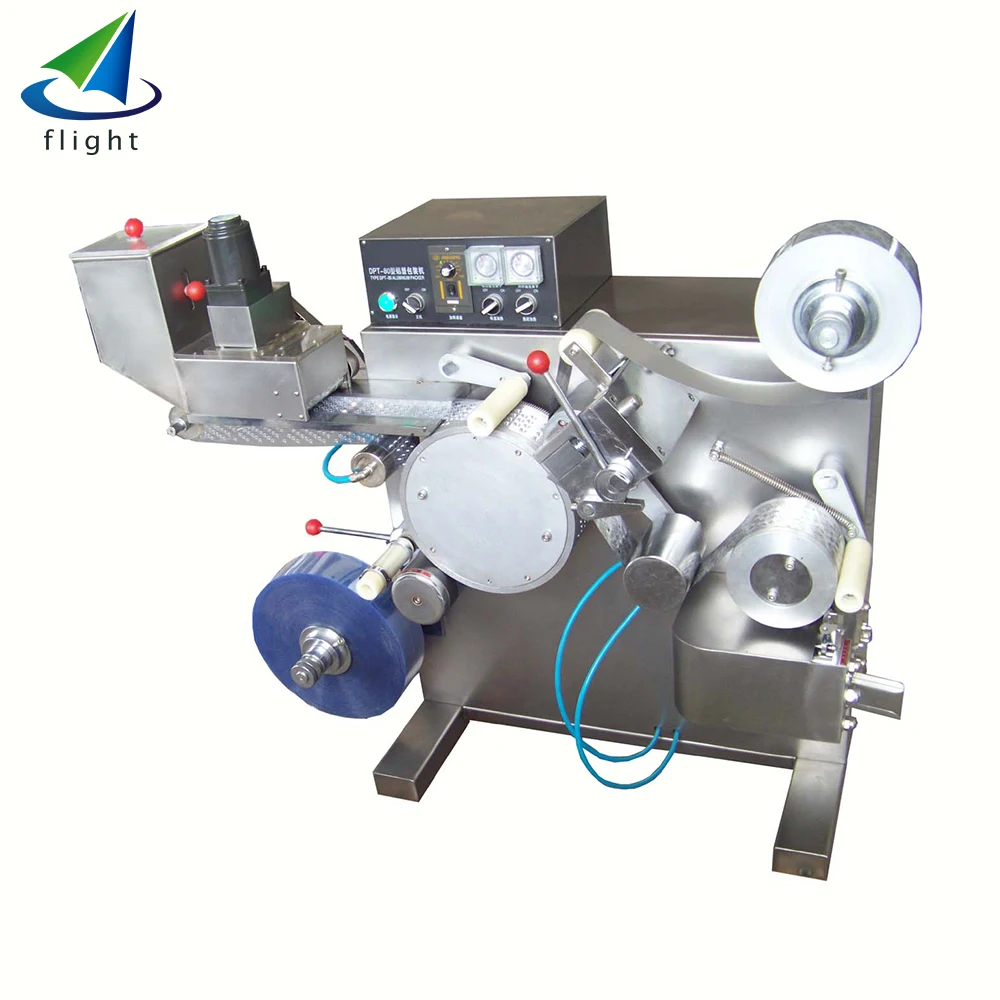

厂家批发小型铝塑泡罩机

  • 厂家批发小型铝塑泡罩机
  • 厂家批发小型铝塑泡罩机
  • 厂家批发小型铝塑泡罩机
  • 厂家批发小型铝塑泡罩机
  • 厂家批发小型铝塑泡罩机
  • 厂家批发小型铝塑泡罩机
  • 厂家批发小型铝塑泡罩机
型号︰DPT-80
品牌︰-
原产地︰中国
单价︰-
最少订量︰1 件
分享到:

 共有 9 相关信息
12345下一个

产品描述


China Factory Blister Coins Packing With Great Price

 Machine major function introduction



Designed by our company earliest and produced at largest batch process, DPT-80 mini-type

Bubble-cap packing machine is the smallest, lightest, cheapest and energy consumption

Lowest packing equipment among the similar mode both in domestic and abroad.

This machine is widely suitable for new product preparation room of pharmaceutical section

Of people’s hospital, small pharmaceutical factory, drug rest. It’s also suitable for aluminum

Sculpture packing of capsule, sugarcoating tablet and plain tablet medicine or improvement packing of special specification.

This machine can continually and automatically complete the packing proceedings, is blister cap form-taking, medicine-feeding, heat sealing, printing lot no, and cutting into format. It

Has advantage as compact structure, full function, gear wheel working, and accurate

Synchronization, stable cooperation, easy to replace the mould, low cost and needn’t to equip

Auxiliary unit. Turn on power and connect it with cooling water, you can produce in a large scale.

Item/model

DPT-80

Capacity

20,000-50,000 pcs/hour

Punching frequency

30 times/min/plate each punching

Plate size

90x80 mm(designed according to customers’ requirement)

Packing material

PVC hard piece: width: 65-90 mm, thickness: 0.25-0.30 mm

Bore diameter of roll shaft: 60-70 mm

PTP aluminum foil: width: 65-70 mm, thickness: 0.02-0.025 mm

Bore diameter of roll shaft: 60-70 mm

Power

1.5 KW

Power supply

AC, 220V/50-60 HZ, 1 phase

Overall size

980(L)x480(W)x980(H) mm

Weight

230 kg





Item/model

DPT-140

Capacity

30,000-100,000 pcs/hour

Punching frequency

27-40 times/min/plate each punching

Plate size

140x80 mm(designed according to customers’ requirement)

Packing material

PVC hard piece: width: 65-90 mm, thickness: 0.25-0.30 mm

Bore diameter of roll shaft: 60-70 mm

PTP aluminum foil: width: 140 mm, thickness: 0.02-0.025 mm

Bore diameter of roll shaft: 60-70 mm

Power

5 KW

Power supply

AC, 220V/50-60 HZ, 1 phase

Overall size

1800(L)x780(W)x1400(H) mm

Weight

290 kg






——Our Company

4

 Flight Pharmaceutical Machinery CO., Ltd is the professional manufacturer and export of

various pharmaceutical machineries in China. Our company has profuse designs with series

quality grade, and expressly, our price is very competitive, because we are manufactory.

  Our factory developed about forty types of machines in over ten varieties. By ISO9001:2000

quality system attestation, accord with GMP attestation request. All tasks from casting to

metal machining, and general assembly are accomplished ourselves.

  We produce and export various pharmaceutical machineries, relevant medicament detecting

instruments and packing machinery, such as Rotary tablet press, Single punch tablet

press, Pulverizer, Mixer,Coating machine, Granulator, Labeling machine, Liquid filling

machine, Capsule filing machine, Blister packing machine, and so on.

  We have professional export office, with an experienced and professional team, they will

service in whole business. By excellent quality, reasonable price and perfect after-service,our

products have been sold in many countries and regions all over the world, Such as United

States, Canada, Australia, United Kingdom, Bulgaria, Russia, Indonesia, Pakistan, Thailand

and Vietnam etc, these products are very popular with the customers there.



 Try to do everything, let customer satisfaction, this is our company’s service tenet.



——Our Customer——





Certificate


Packing & Shipping

  ——Packing & Shipping——


Delivery time

Within 30 days after receiving the payment.

Payment methods

T/T or Western Union payment, and full payment before shipping

Guarantee

One year quality guarantees and free with spare parts for one year.

After sales service

The English user manual Circuit diagram

价格条款︰FOB Shanghai
付款方式︰TT
包装︰胶合板木箱
交货期︰15个工作日
质量/安全认证︰iso CE

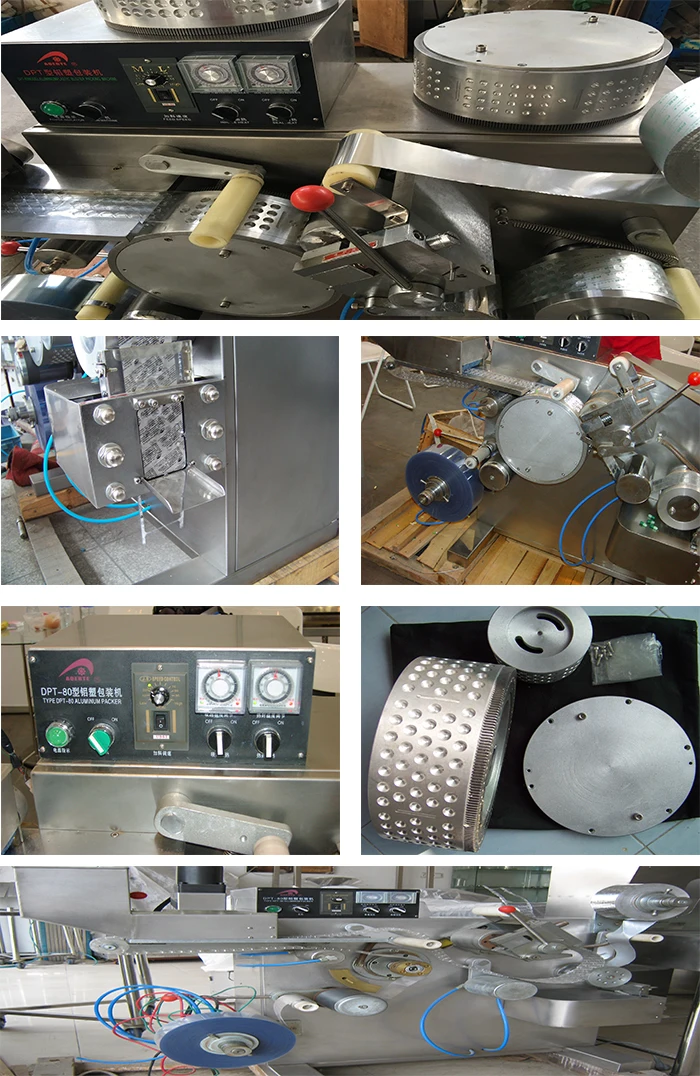

产品图片
