Best Quality Small Noise Pill Tablet Counting Bottling Machine
—Description—

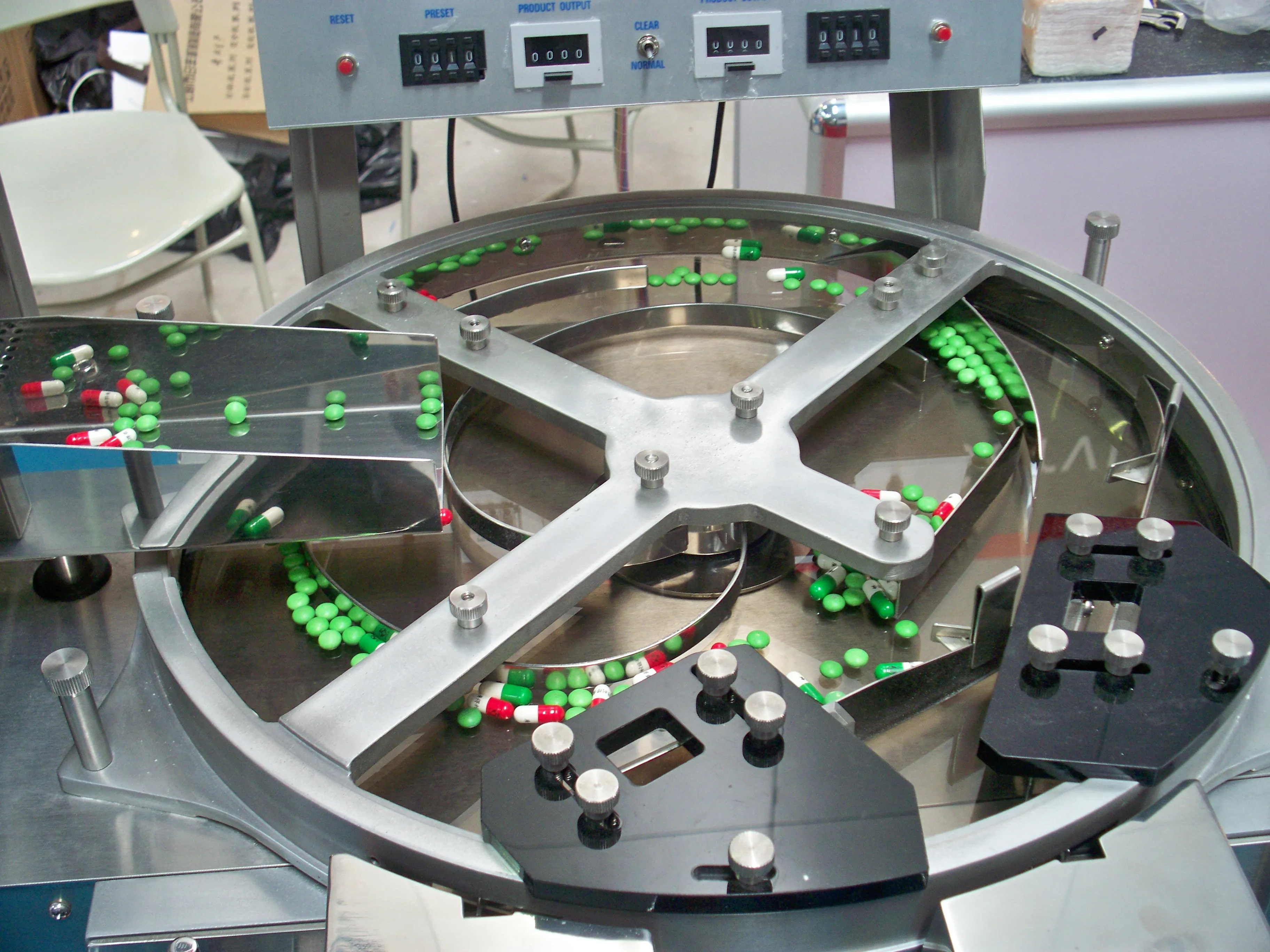

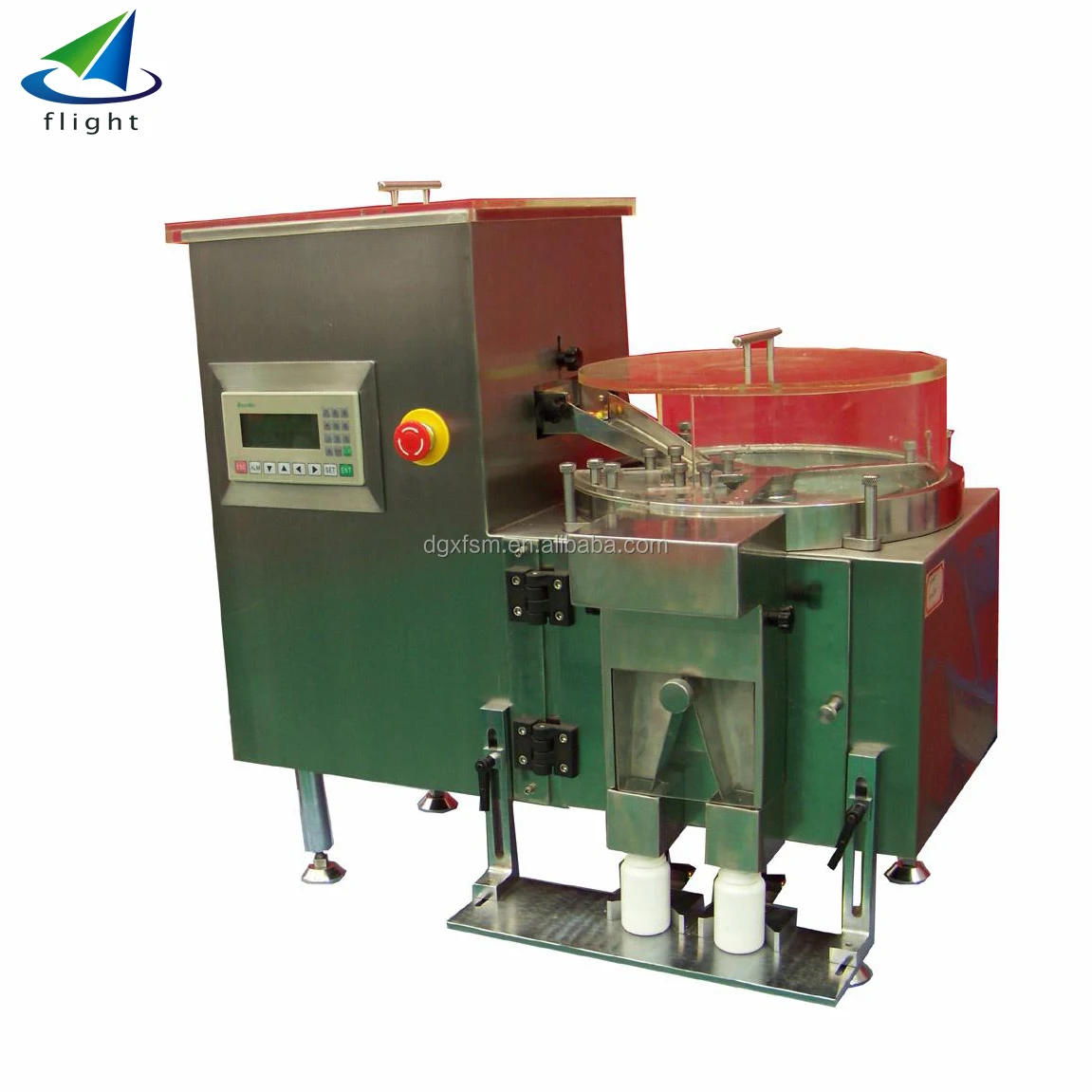

Mini electronic counting and filling machine
CCD sensitization technology, PLC control, human and machine interface operating system count automatically, put bottle by manual and fill medicine automatically, high differentiate rate, fast responding speed, count accurately, it is no need to change mould when change the type of medicine. And it can set the filling quantity in the touch screen.
This machine is widely applied for tablet or capsule counting for mini production in hospital, small pharmaceutical factory etc.
—Technical Parameters—
|
Diameter of counting plate
|
360 mm
|
|
Applied size
|
Tablet diameter: 5 mm – 12 mm
Capsule: 0# - 5 #
|
|
Hole quantity of the plate
|
5 – 100 optional
|
|
Production capacity
|
12 – 26 bottle(bag)/min, 20 ml – 300 ml,
60000 pcs /hour
|
|
Motor power
|
550 W
|
|
Power supply
|
AC, 220V/50HZ 1 phase
|
|
Weight
|
100 kg
|
|
Overall size
|
900 x 600 x 900 mm
|
——Our Company—
——Our Customer——
Certificate
——Packing & Shipping——
|
Delivery time
|
Within 30 days after receiving the payment.
|
|
Payment methods
|
T/T or Western Union payment, and full payment before shipping
|
|
Guarantee
|
One year quality guarantees and free with spare parts for one year.
|
|
After sales service
|
The English user manual Circuit diagram
|
